OLA Micronano BIO Resin(DLP-RESIN)

152$

3D printing DLP Resin Light yellow

More Details

Biocompatible resin with ultra-high printing resolution; supports fine details as small as 50μm with a machining tolerance of ±20μm.

Mechanical Properties
Tensile Strength: 40 MPa
Elongation at Break: 5%
Bending Strength: 50 MPa
Bending Modulus: 1500 MPa
Hardness (Shore D): 80
Thermal Properties
Heat Deflection Temperature: 100°C
Other Properties
Viscosity: 200 cps

Max. Part Size:

84mm x 63mm x 70mm

Tolerance and Precision：

±20 µm or ±0.02%

View Data Sheet

OLA Micronano Translucent Resin(DLP-RESIN)

152$

3D Printing DLP Resin Translucent

More Details

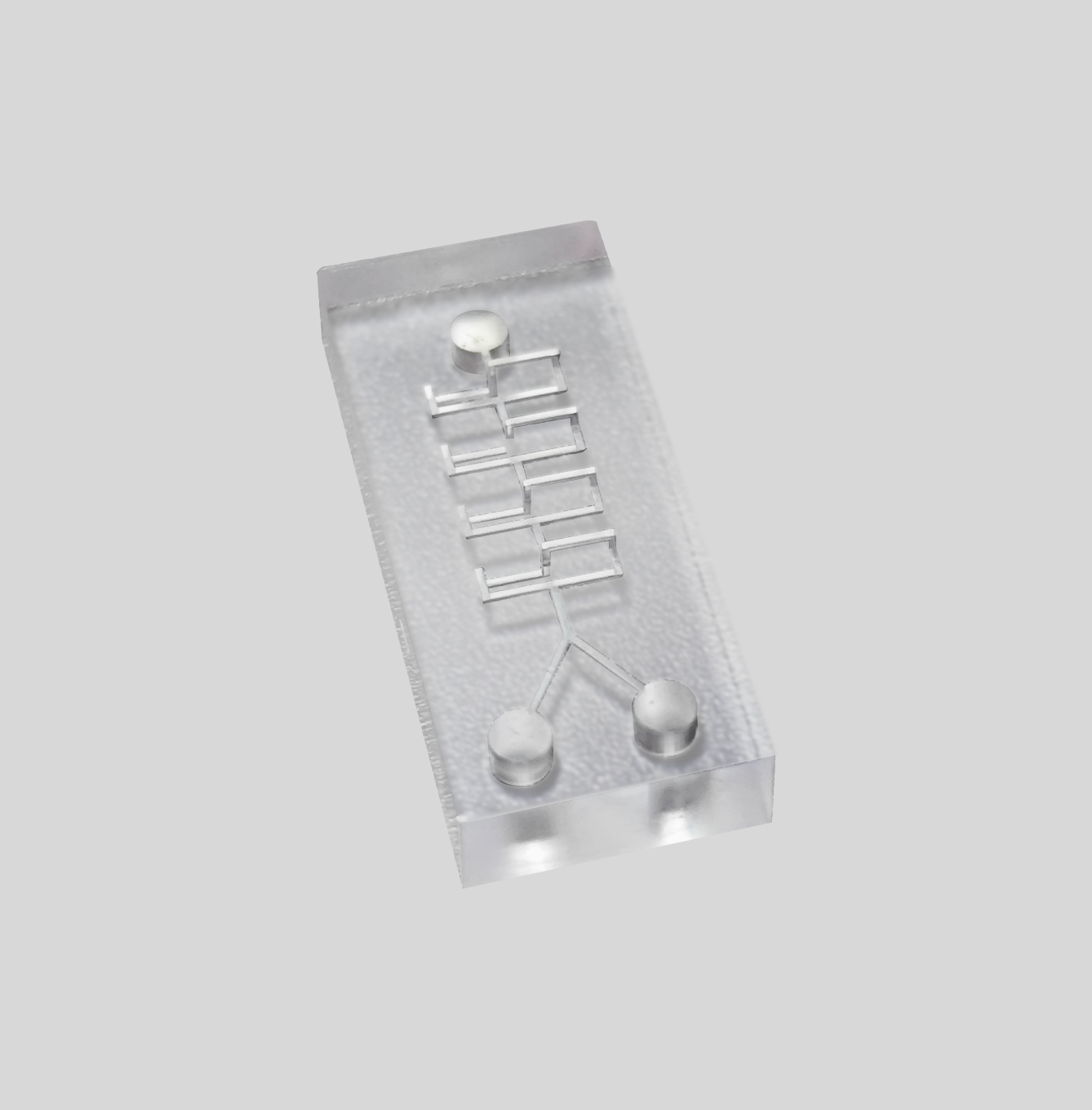

OLA micro/nano translucent resin enables ultra-high-resolution 3D printing with feature sizes as small as 50μm and machining precision down to ±20μm. Suitable for ultra-thin endoscopic tips, microfluidic chips, and other compact medical structures.

Thermal Properties
Heat Deflection Temperature (@0.45 MPa): 80°C
Electrical Properties
Dielectric Constant (ℇ/5GHz): 3
Dielectric Loss (tanδ/5GHz): 3.53e-2
Mechanical Properties & Viscosity
Tensile Strength: 40 MPa
Elongation at Break: 3%
Bending Modulus: 1500 MPa
Bending Strength: 50 MPa
200 cps

Max. Part Size:

84mm x 63mm x 70mm

Tolerance and Precision：

±20 µm or ±0.02%

View Data Sheet

OLA Micronano HT210 Resin (High Temperature Resistant)

158$

3D Printing DLP Resin Light yellow & Black

More Details

High-temperature resistant and ultra-precision DLP resin. Capable of printing microstructures as small as 50μm with machining tolerance up to ±25μm.

Mechanical Properties
Tensile Strength (ISO527-1:2019): 51 MPa
Bending Strength (GB/T 9341-2008): 110 MPa
Thermal Properties
Heat Deflection Temperature (HDT @ 1.8 MPa): 210°C
Impact Properties&Other Properties
Elongation at Break (ISO527-1:2018): 2%
Bending Modulus: 4300 MPa
Viscosity: 2000 cps
Shore Hardness: 92 D

Max. Part Size:

84mm x 63mm x 70mm

Tolerance and Precision：

±25 µm or ±0.025%

View Data Sheet

OLA Micronano HE200 Resin (High Elasticity)(DLP-RESIN)

150$

3D Printing DLP Resin Black

More Details

Highly elastic micro/nano DLP resin with excellent flexibility and fine detail resolution. Supports ultra-precision printing with a minimum feature size of 100μm and machining tolerance up to ±30μm.

Mechanical Properties
Tensile Strength: 7 MPa
Elongation at Break: 200%
Bending Strength: 2 MPa
Viscosity
Viscosity: 600 cps
Hardness
Shore Hardness: 60-70A

Max. Part Size:

84mm x 63mm x 70mm

Tolerance and Precision：

±30 µm or ±0.03%

View Data Sheet

OLA Micronano ST Resin(LCD-RESIN)

152$

3D pronting DLP Resin Black

More Details

Combines high strength and excellent toughness with ultra-precision DLP printing. Capable of printing fine structures down to 50μm with machining tolerances up to ±30μm. Offers superior surface quality and dimensional accuracy, making it ideal for precision engineering.

Mechanical Properties
Tensile Strength: 45 MPa
Elongation at Break: 15%
Bending Strength: 54 MPa
Bending Modulus: 1500 MPa
Hardness (Shore D): 75
Thermal Properties
Heat Deflection Temperature: 80°C
Other Properties
Viscosity: 800 cps

Max. Part Size:

84mm x 63mm x 70mm

Tolerance and Precision：

±30 µm or ±0.03%

View Data Sheet
