In additive manufacturing, parts are built layer by layer. But what happens when a layer has nothing underneath to support it? That’s where 3D printing supports come in. These structures prevent overhangs or bridges from collapsing, ensuring accurate prints with minimal defects.
Whether you need supports depends on 3D printing technology and your model’s geometry. Supports impact surface finish, tolerance, and post-processing time, so plan ahead for the best results.
Contents:
What Are 3D Printing Supports
3D printing supports are temporary structures generated in slicing software to stabilize overhangs and bridges during the printing process. These supports ensure successful prints without warping or collapsing. They are especially important in complex 3D printing designs for FDM, SLA, and SLM metal 3D printing.
Image Source: AMERALABS
Which 3D Printing Technologies Require Supports?
1. FDM (Fused Deposition Modeling)
FDM builds objects layer by layer using thermoplastic filaments. Overhangs exceeding 45° or bridges longer than 5 mm need supports. Short bridges can print without supports using bridging techniques.
2. SLA (Stereolithography)
SLA almost always requires supports because liquid resin needs stability during curing. The slicer software determines support placement based on geometry.
3. SLM (Metal 3D Printing)
Selective Laser Melting (SLM) uses high-energy lasers to fuse metal powder. Supports are essential to fix parts to the build plate and reduce thermal distortion. Removing metal supports is challenging, so planning is critical.
4. SLS & MJF

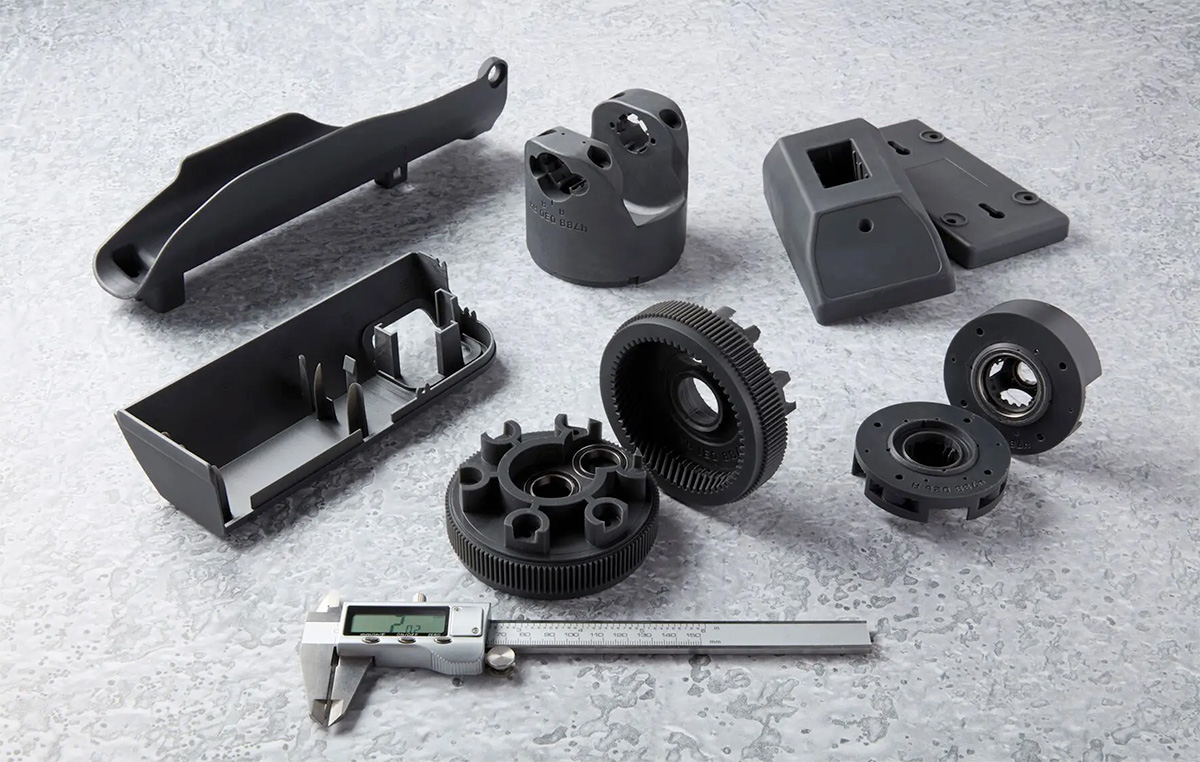

SLS (Selective Laser Sintering) and MJF (Multi Jet Fusion) do not require supports because the surrounding powder acts as a natural support structure.
Image Source: Formlabs
When Do You Need 3D Printing Supports?
Overhangs > 45°: Beyond this angle, layers will sag.
Bridges > 5 mm: Longer bridges require additional support.
Use slicer preview modes to identify problem areas before printing.
How to Add Supports Effectively

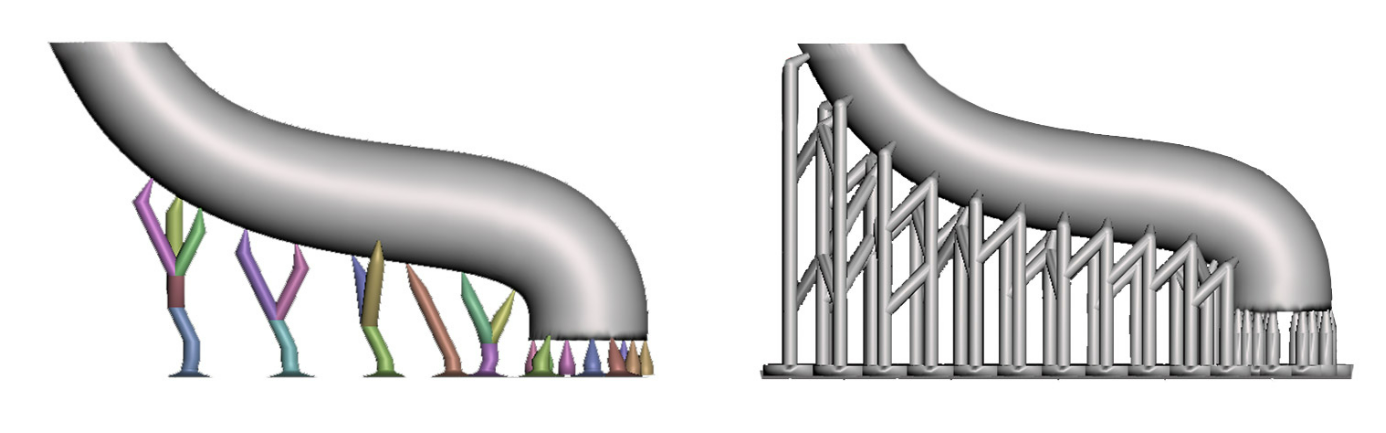

Select Support Type: Linear for flat surfaces, tree-like for delicate curves.
Auto-Generate: Slicers like Cura and ChiTuBox highlight unstable areas.
Adjust X/Y & Z Distances: Easier removal without damaging the model.
Choose Patterns: Zig Zag is recommended for balance between strength and removal ease.
How to Remove 3D Printed Supports?
Break gently by hand.
Use tools like pliers or scrapers for tough spots.
Sand with fine-grit sandpaper (220–1200) for smooth finish.
Dissolvable supports with dual extrusion for complex parts.
Disadvantages of Supports
Increased print time.
Higher material costs.
Additional post-processing steps.
Risk of surface damage during removal.
